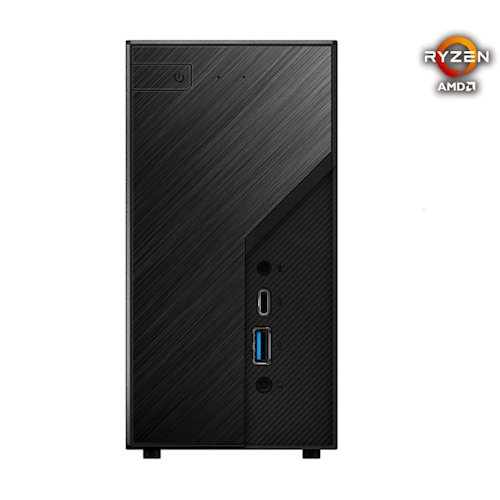

ASRock System DESKMINI X300W AMD AM4 X300 Max.64GB DDR4 HDMI/DP/D-Sub
Information
DeskMini X300 Series
AMD AM4 Socket CPU
– Renoir, Picasso, Raven Ridge, up to 65W
– Support MAX Height <= 46mm CPU Cooler
Supports Overclocking Option with X300
High-Speed DDR4-3200MHz Memory
Dual Ultra M.2 (NVMe)
- M2_1 M.2 (2280) – PCIe Gen3 x4
- M2_2 M.2 (2280) – PCIe Gen3 x2/x4
2 x 2.5" SATA 6Gb Hard Drive
Support RAID 0/1 function
HDMI, DisplayPort, D-Sub
M.2 For Wi-Fi Module
USB 3.2 Gen1 Type-C
Detail Specifications
CPU
– Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)
Memory
– Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
– AMD Ryzen 4000 series 3200MHz
– AMD Ryzen 3000/2000 series 2933MHz
Chipset
– AMD X300
Graphics Output
– HDMI(4K at 60Hz)
– DisplayPort, D-Sub
Audio
– 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)
Front USB
– 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
Rear USB
– 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,
Storage
– 2 x SATA3 with Power connectors (RAID 0/1)
– 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
– 1 x Ultra M.2 (2280) Slot
– PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
– PCIe Gen3 x2 (Athlon 2xxGE series APU)
LAN
– Gigabit LAN (RealtekRTL8111H)
WLAN
– 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors
– 1 x USB 2.0 Header
– 1 x Front Panel Header
– 2 x 4-Pin fan connectors (CPU, SYS)
– 1 x DC-In Jack (Supports 19V Power Adapters)
– 1 x Internal Speaker Header (4-Pin)
– 1 x Chassis Intrusion Header (2-Pin)
– 1 x Audio Header (4-Pin)
Accessory
– 2 x SATA Data with Power Cable
– 1 x 120W/19V adapter
– 1 x Screws Pack
Item Dimension (L”xW”xH”)
9 x 9 x 8
Weight
5 lbs
Warranty Information
one year
